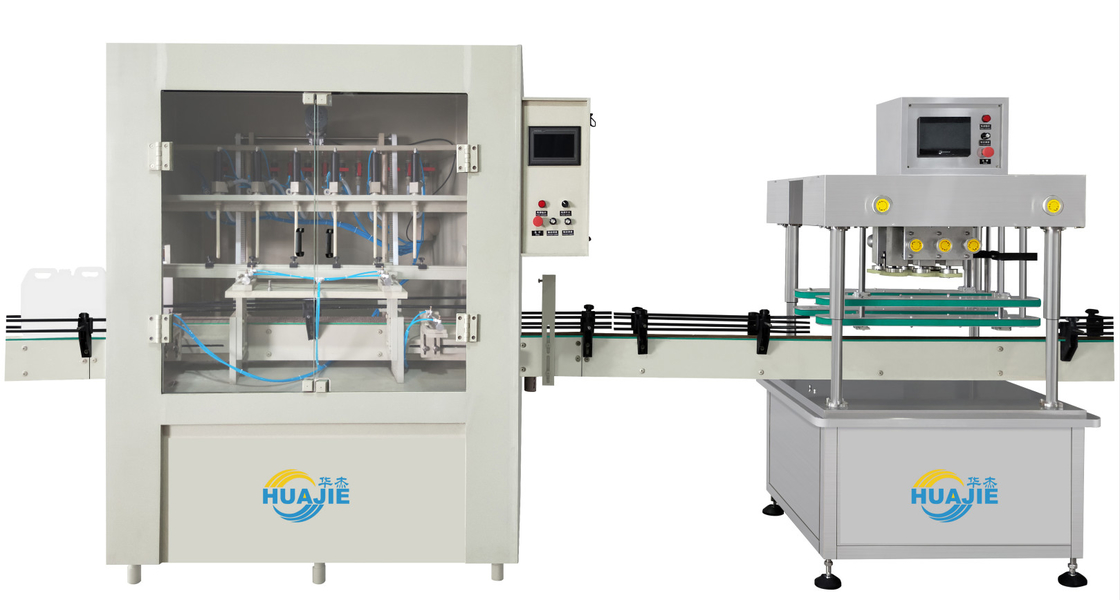

6 Head Automatic Liquid Filling Capping Machine 50ml-5000ml Corrosion Prevention Bleach Toilet Cleaner Filling Capping M

Introduction

This machine is a high-tech filling machine developed by our company with full anti-corrosion (PLC) program control, photoelectric sensor, and pneumatic execution. This machine is aimed at strong corrosive liquids such as: color bleaching liquid, 84 liquid, Filling production of toilet cleaning liquid and bleaching liquid. It is also designed with the function of submerged filling, accurate measurement, no bubbles and no salivation during filling.

Skills requirement:
1. It is suitable for the filling of all-in-one media of various viscosities (medium and low viscosity) and various shapes and different specifications of containers, and the filling specifications can be switched within a few minutes.
2. No need to add spare parts, just make adjustments to complete.
3. Choose the filling quantity according to the actual production capacity and determine the number of free filling heads.
4. Touch-type color screen operation, which can display production status, operating procedures, canning methods, etc. The screen is intuitive, easy to operate, and easy to maintain.
5. The filling head is equipped with a bottle-clamping device to ensure accurate filling and positioning.
6. The internationally advanced gas filling valve ensures that there is no dripping or drooling during the filling process.
7. The metering of the filling head can be adjusted individually to achieve consistent filling and metering.
8. The accuracy of valve filling can be set to 0.01 second, which can control the measurement accuracy within ±1% error range

Technical parameter
1. Model: HJ-FFZ-8
2. Filling speed: 500-800 bottles/hour (refers to 1.5 liters of water quality)
3. Measurement accuracy: ±0.5%
4. Working voltage: 220 volts 110V can be customized
5. Working pressure: 6-7 kg/square centimeter
6. Net weight of the machine: 750 kg
7. Dimensions: 2000×910×220mm
