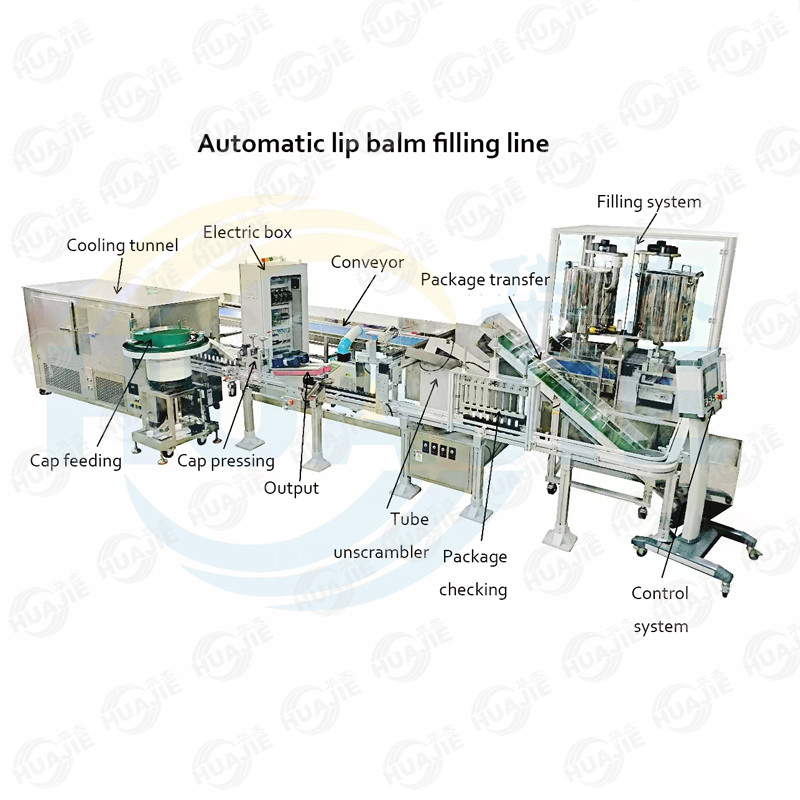

Filling process: automatic tube feeding into the mold - detection of packaging materials (whether the cup holder inside the tube is rotated to the bottom) - simultaneous injection of 8 holes - twice pre cooling+heat recovery function (to solve the problem of shrinkage holes on the paste surface) - tunnel type circulating freezing - automatic capping - automatic capping - automatic discharge
Parameter
1. Appearance size: 6500 * 2000 * 2200mm
2. Total power: 22KW
3. Voltage: 220V/three-phase/60HZ
4. Overall production capacity: 40-60 pcs/min
5. Number of operators: 1-2 people
6. Working air source: ≥ 6kg/cm2 (air source must be dry)
7. Bottle management method: using a single track vibration plate for bottle management
8. Bottle sorting speed: 40-60pcs/min
9. Climbing and loading machine: It is driven by a motor to climb and load materials, with adjustable speed
10. Bottle handling and removal method: Fiber optic induction air blowing to remove reverse tubes or coreless tubes
11. Material: Main frame: Aluminum profile, bucket material SUS304,
12. Quantitative method: servo controlled piston quantitative filling
13. Filling servo: 750W
14. Filling method: Fiber optic induction automatic filling
15. Filling quantity: 1-14ml
16. Filling accuracy: ± 1%
17. Heating tube (pump): 800W/220V (1 piece)
18. Temperature sensor (pump): M6/3-wire/PT type (1 piece)
19. Mixing motor: 200W, speed adjustable from 1 to 90 revolutions
20. Bucket volume: 60L, three-layer bucket heated by oil separation
21. Barrel temperature: maximum 120 ℃
22. Heating tube (material barrel): 2KW * 270mm/220V, one material barrel with 2 pieces
23. Temperature sensor (material barrel): 3/8 teeth * 75mm/3 wire/PT type, one material barrel with one piece
24. Conveyor belt length: 4 meters (actual length is subject to communication and confirmation with the customer)
25. Transmission method: Motor driven roller transmission
26. Transmission motor: 200W, speed adjustable
27. Material of conveyor belt frame: aluminum profile
28. Pre cooling device: connected to the cold air of the refrigerator, equipped with an acrylic cover to prevent the cold air from flowing out
29. Appearance size of refrigeration unit: 2000mmX1100mmX1400mm (actual size is subject to communication and confirmation with the customer)
30. Body material: SUS304 stainless steel
31. Compressor: 7.5P
32. Refrigeration method: air cooling
33. Refrigeration capacity: -18 ℃ (at room temperature of 28 ℃ and with the refrigerator door fully sealed)
34. Cover method: Using a single track vibrating disc to cover the upper cover
35. Capping method: The conveyor belt is driven by an electric motor and is gradually pressed, with adjustable conveyor belt speed
36. Gland motor: 15-25W
37. Finished product delivery method: The motor drives the belt to clamp and transport the product for discharge
38. Finished motor: 25W
39. Clamp finished belt: soft rubber+PVC, without damaging the packaging material
40. Electrical components: Delta PLC programmable controller&human-machine interface,Delta servo motor and drive, Air Tac cylinder& solenoid valve, Omron intermediate relay, Panasonic photoelectric switch, fine research small gear motor, Mingrong fuse seat, Schneider button switch.
41. Features of this machine:
1) Using PLC programmable controller and human-machine interface to achieve automatic operation of equipment
2) Using a combination of vibrating discs and bottle sorting machines to achieve automatic packaging, replacing manual labor
3) Servo control of filling quantity to improve filling accuracy
4) The filling amount can be adjusted between quantitative range values based on different volumes of packaging materials
5) Implement multi track operation inside the freezing tunnel to increase product storage and ensure the production capacity and speed requirements of the entire production line
6) Using a vibrating disc to automatically cover, saving labor
